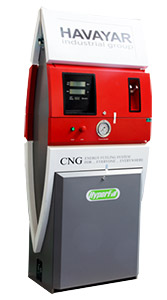

Dispenser

HAVAYAR industrial group is a Dispenser manufacturer of CNG stations. In this regard, it uses modern technology and experience of Compac industrial group. These distributors are designed and manufactured according to IEC and NFPA standards. By employing the optimized software and hardware system, the consumers of the stations are fully satisfied.

















Dispenser

HAVAYAR industrial group is a Dispenser manufacturer of CNG stations. In this regard, it uses modern technology and experience of Compac industrial group. These distributors are designed and manufactured according to IEC and NFPA standards. By employing the optimized software and hardware system, the consumers of the stations are fully satisfied.

HAVAYAR industrial group is a Dispenser manufacturer of CNG stations. In this regard, it uses modern technology and experience of Compac industrial group. These distributors are designed and manufactured according to IEC and NFPA standards. By employing the optimized software and hardware system, the consumers of the stations are fully satisfied.

Eligible options for the distributor:

  • Fueling method: Three lines, one line
  • Gas flow rate: 1000, 2000 and 3000 SCFM
  • Operating pressure options : 3000 PSIG (200 Barg) and 3600 PSIG (250 Barg)

Distributor specifications:

  • Compatibility system: 10٪ ±
  • Range of operating temperature: from -40°C to +50°C
  • Power input: 120/240 VAC and 50/60 Hz

General functionality:

  • Backlight display for easier viewing
  • Coriolis mass detector
  • Fuel pressure equalization system with temperature
  • Connecting with different types of POS and card reader systems
  • Cabinet with coating color coverage

Refueling package with common flow:

  • Three-line and one-line fueling design
  • Nominal refueling time: 1-2 minutes for small vehicles
  • Stainless steel pipe – 3.8 inches
  • Electric solenoid valves
  • 4-inch pressure gauge
  • Built-in absorption filters for each input line
  • Quick disconnect standards in fuel line or breakaway line

High flow refueling package:

  • Distributor flow: 1000 and 2000 SCFM
  • Three-line and one-line fueling design
  • Nominal refueling time 1-2 minutes for buses and small vehicles
  • 2-inch stainless steel tube
  • Actuated ball valves
  • Pressure gauge with 4-inch screen
  • Built-in absorption filters for each input line
  • Quick disconnect standards in fuel supply or drain line

High flow refueling package:

  • Distributor flow: 3500 SCFM
  • One line or three line fueling map
  • 4-5 minutes refueling for big trucks and buses
  • 4-inch stainless steel pipe
  • Actuated ball valves
  • 4-inch pressure gauge
  • Built-in absorption filters for each input line
  • High flow nozzles for buses
  • Quickly Detachable Connection Hose Independent Breakaway
  • Independent Breakaway Detachable Connection Hose

Frequently Asked Questions

Natural gas. This alternative energy is a clean fuel that can be a good solution for the problems that are basically caused by vehicles. Natural gas is not only environmentally friendly but also provides unique and reliable performance.

In order to reduce air pollution and protect the environment for future generations, HAVAYAR industrial group has started its activity in the field of engineering and construction of NGV gas stations and CNG compressors, where natural gas is used for CNG.
